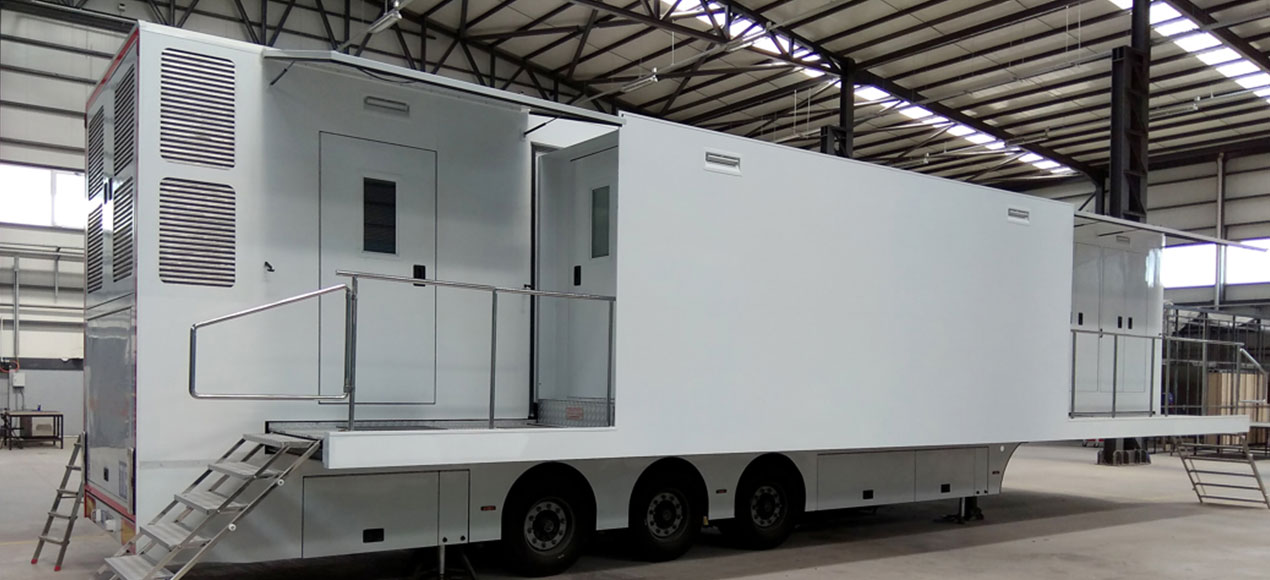

One of our Mega DXP series double-expanding semi-trailers, designed to provide exceptional space and flexibility for broadcast operations, has been successfully delivered to Wizja Multimedia in Warsaw, Poland.

SPECIFICATIONS

Capacity : Up to 26 comfortable workplaces

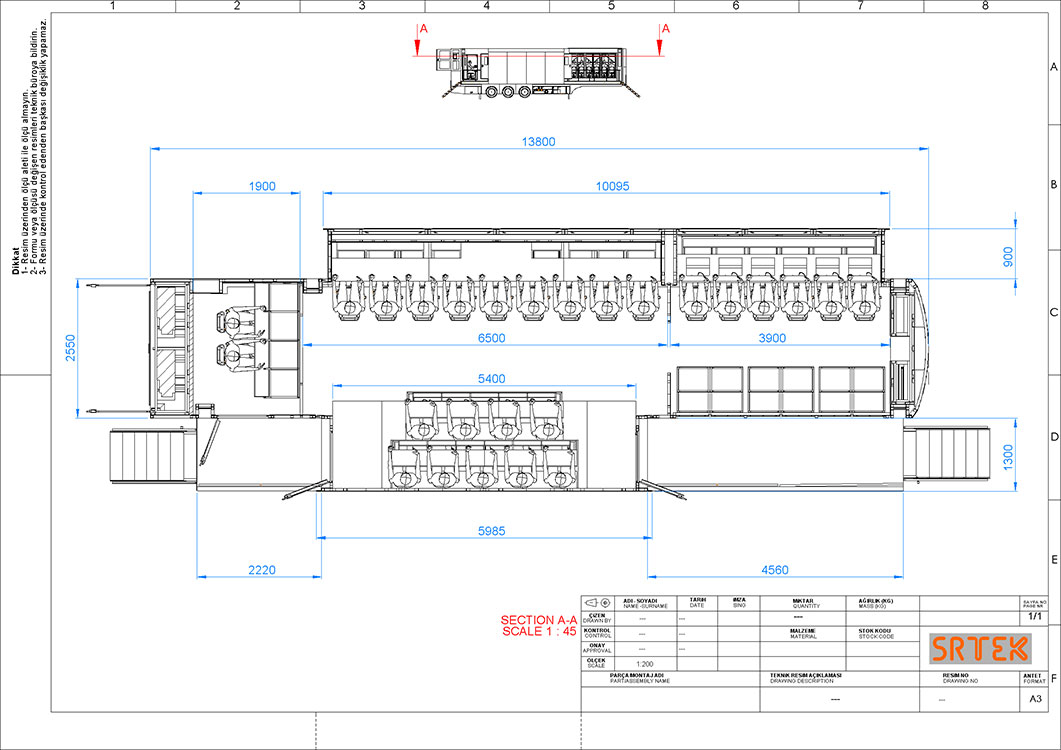

Layout : 3-room configuration, 3 areas
Areas (workplaces) : Audio room (2) Video PCR (9) 2nd PCR (9) Engineering room (6)

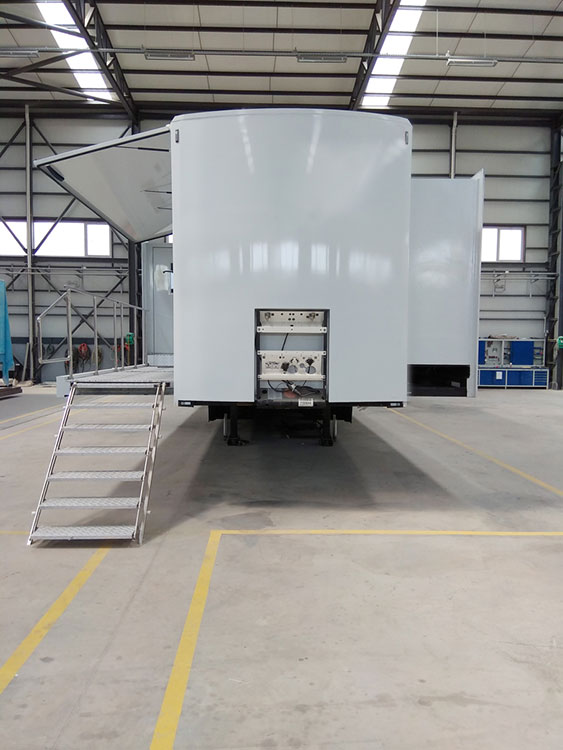

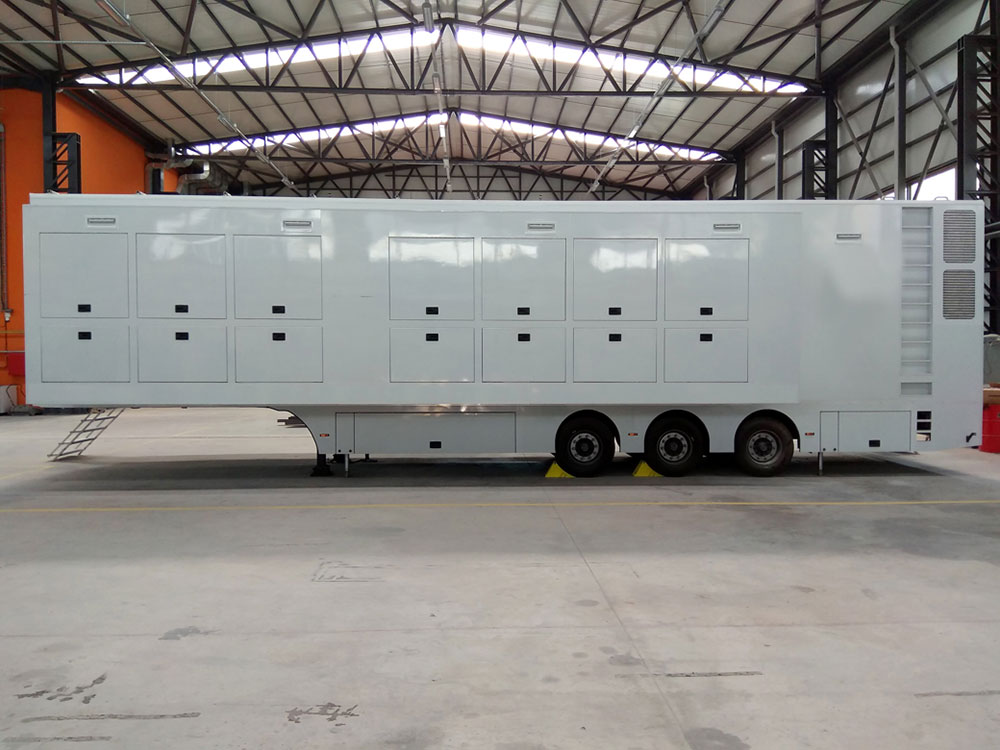

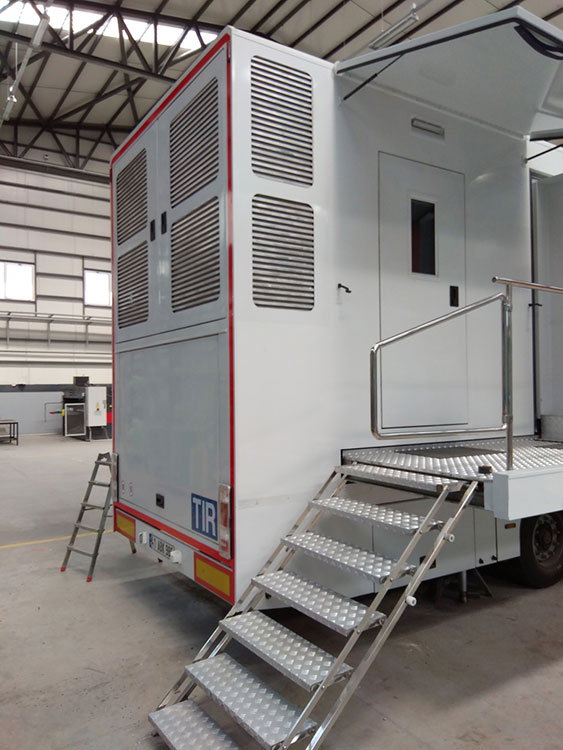

Design : OB semi-trailer with double side expansion
Typical Production Size : Supports up to 24 cameras
Dimensions : 12 m x 2.55 m x 4.0 m (LxWxH) (width extended: 4.75m)
Maximum Weight : 36 t

HIGHLIGHTS

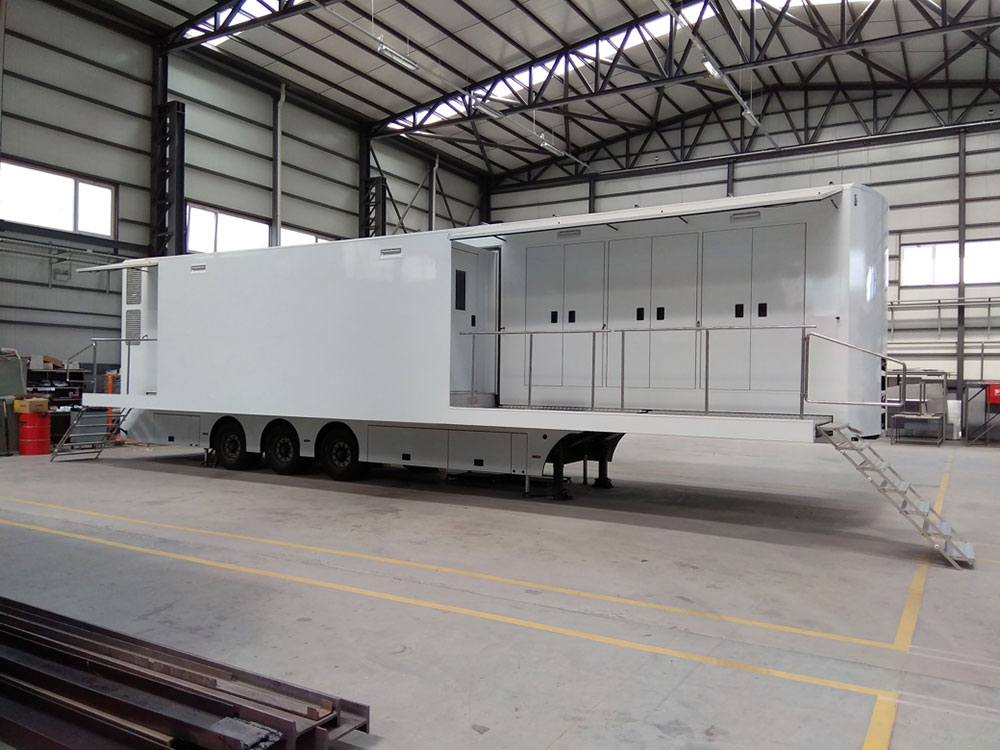

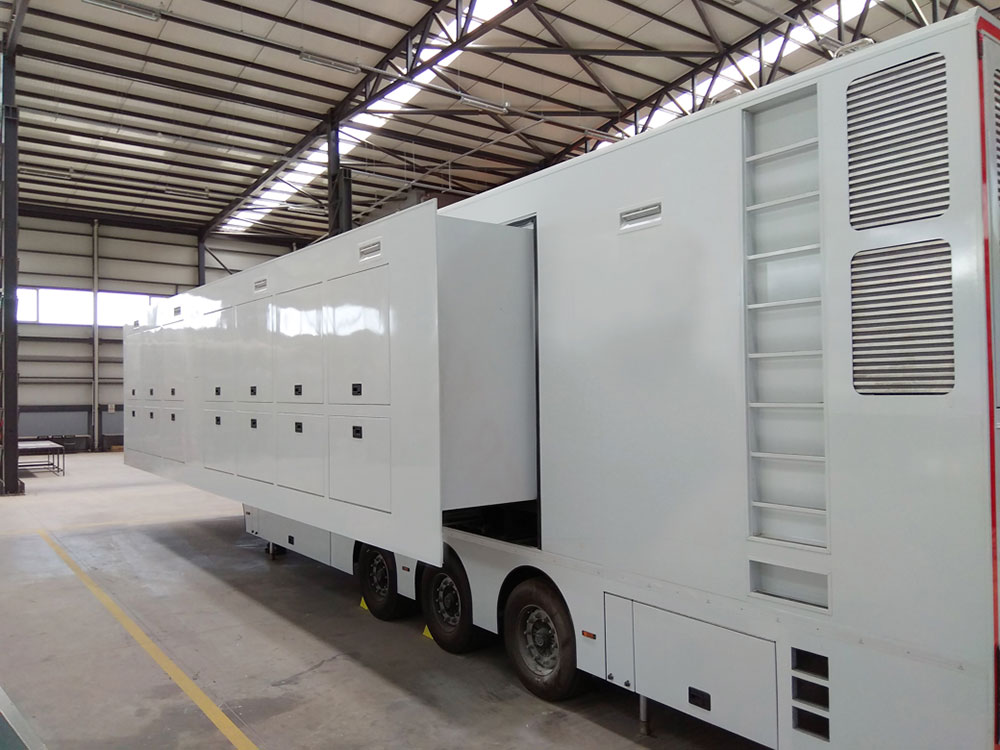

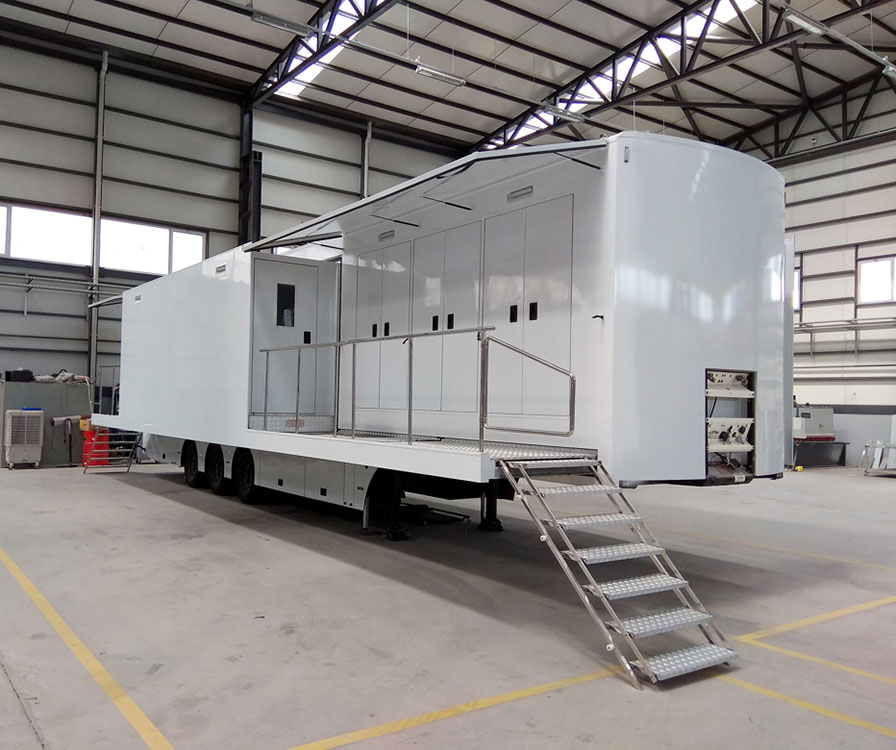

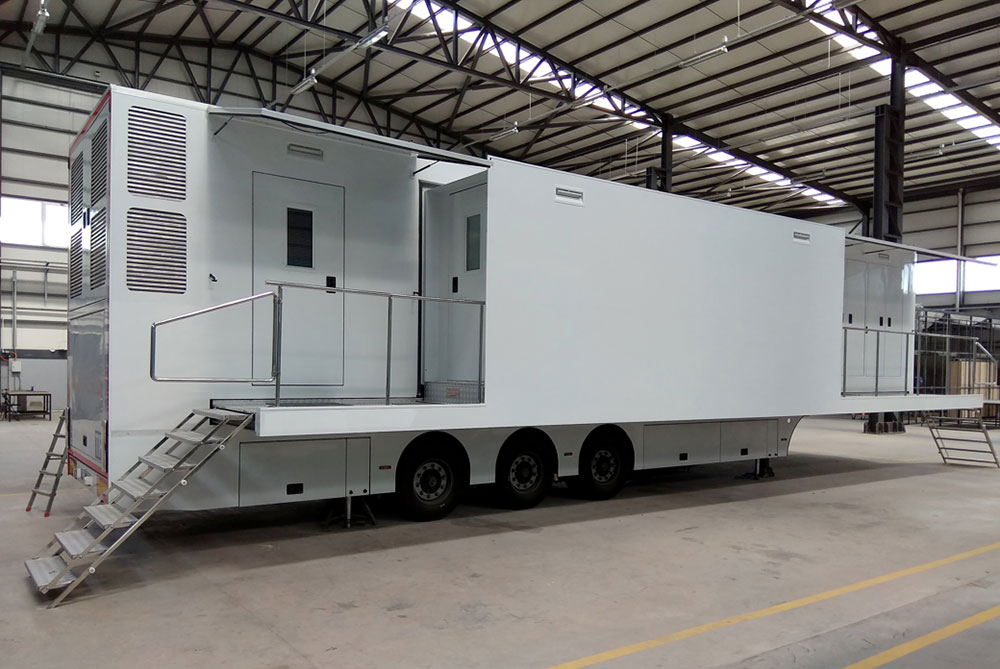

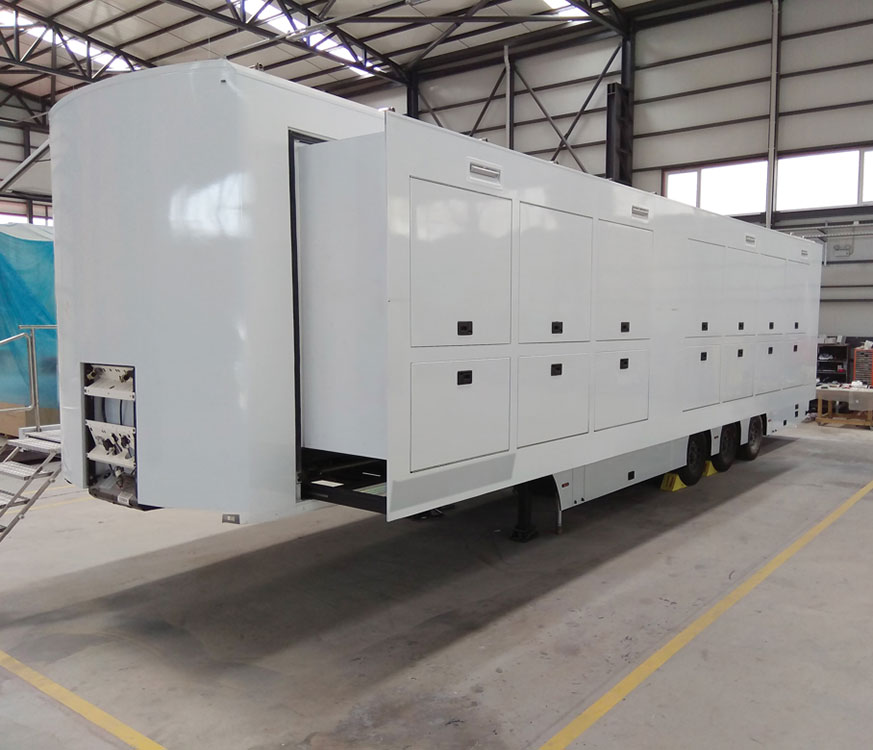

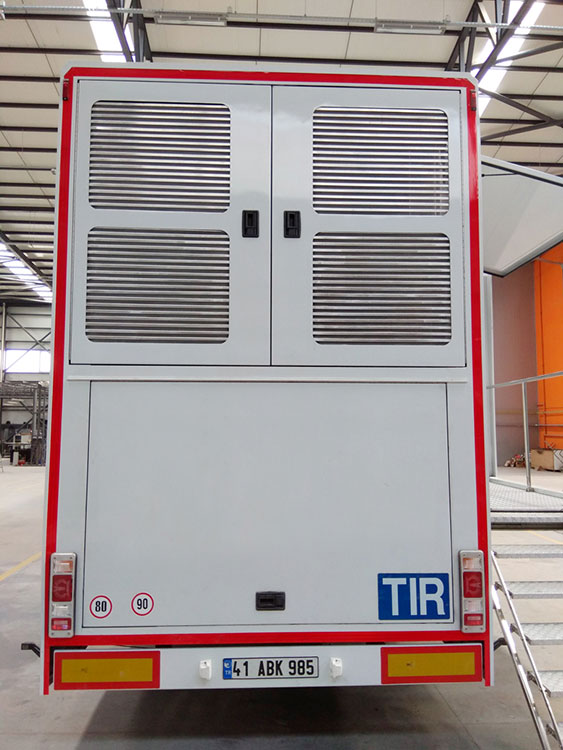

• The OBVAN is 13.8 meters long, 4 meters high and 2.5 meters wide. When expanded its width reaches up to 4.7 meters.

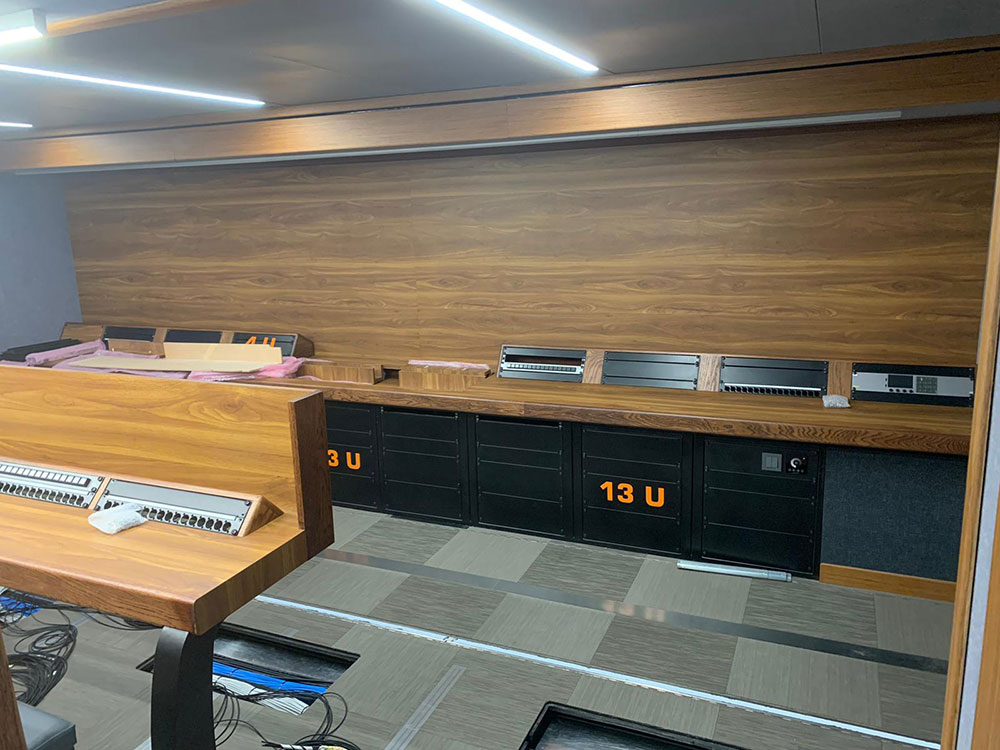

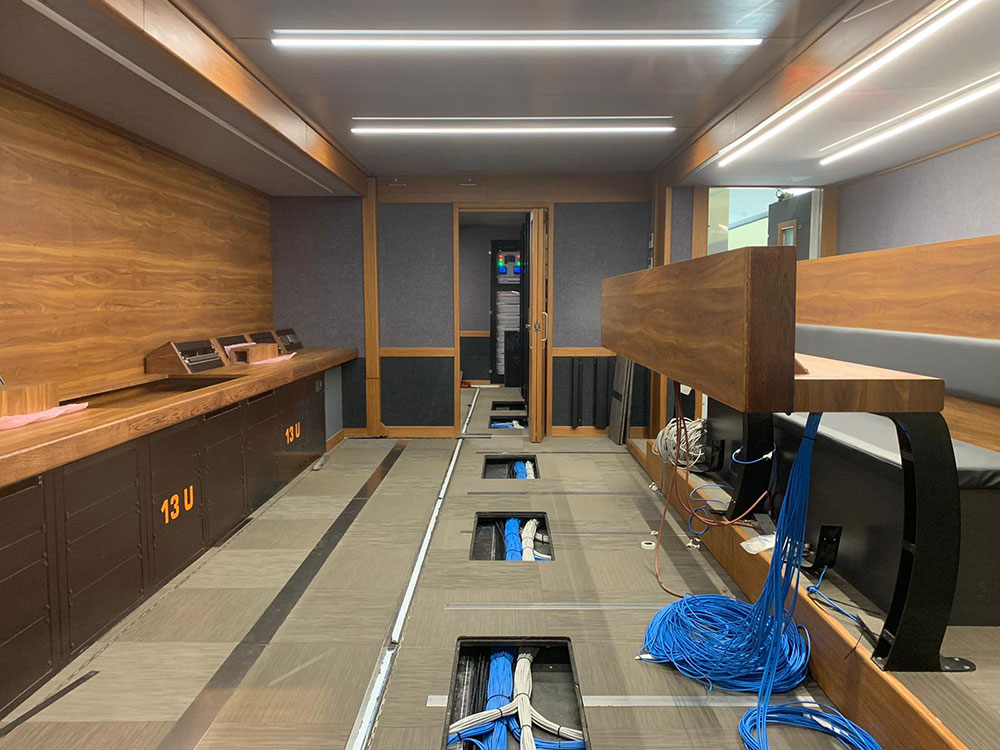

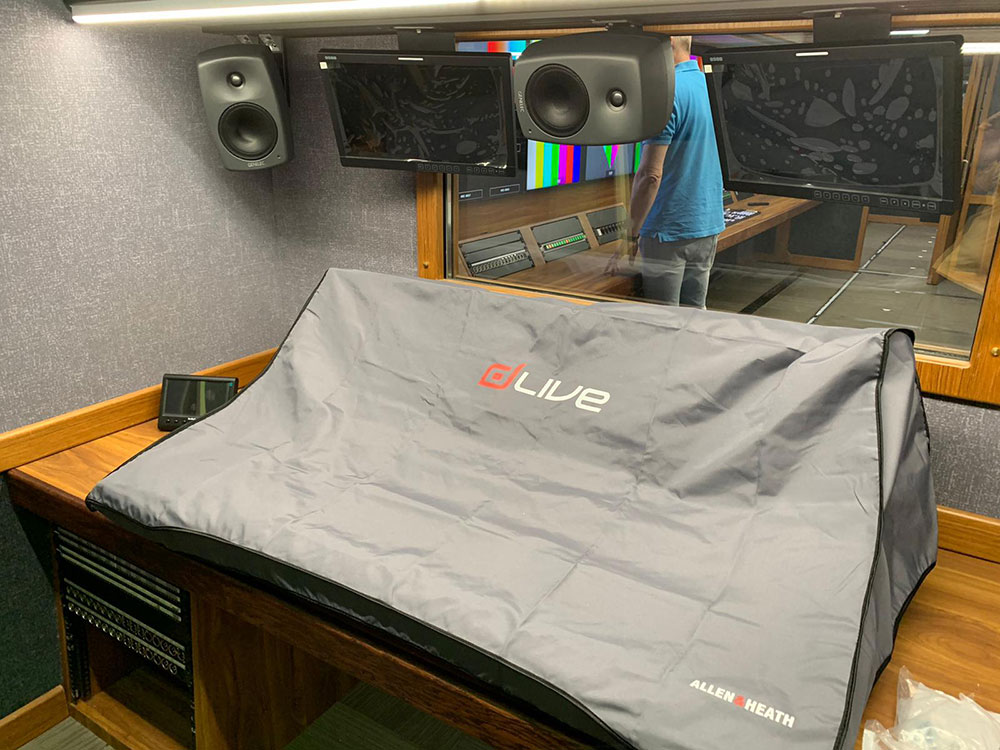

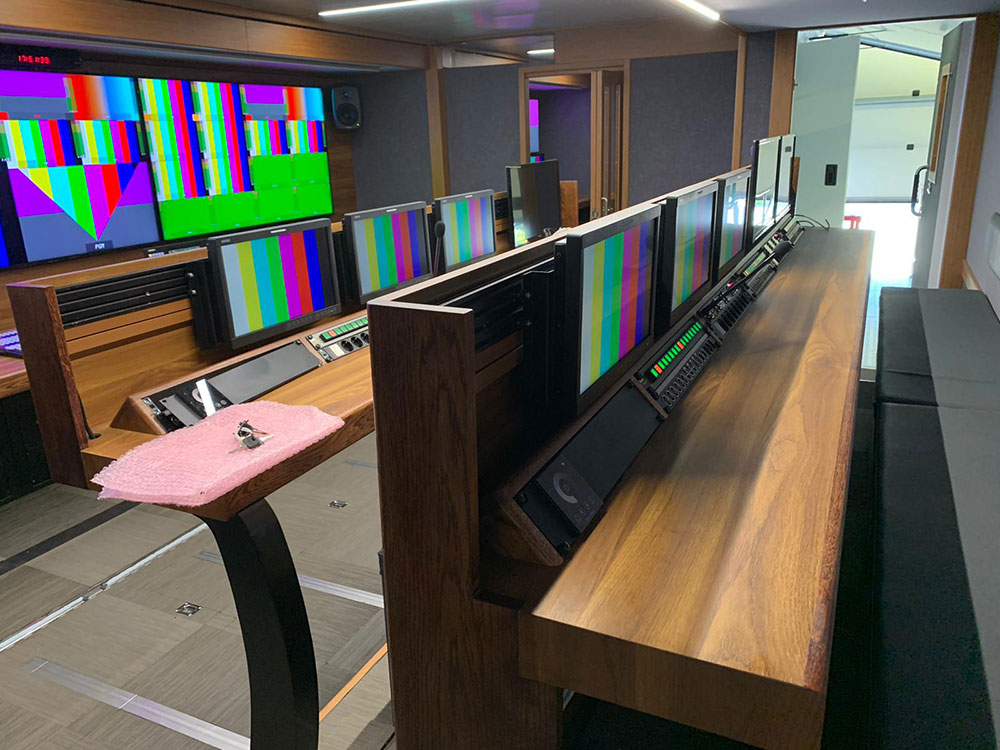

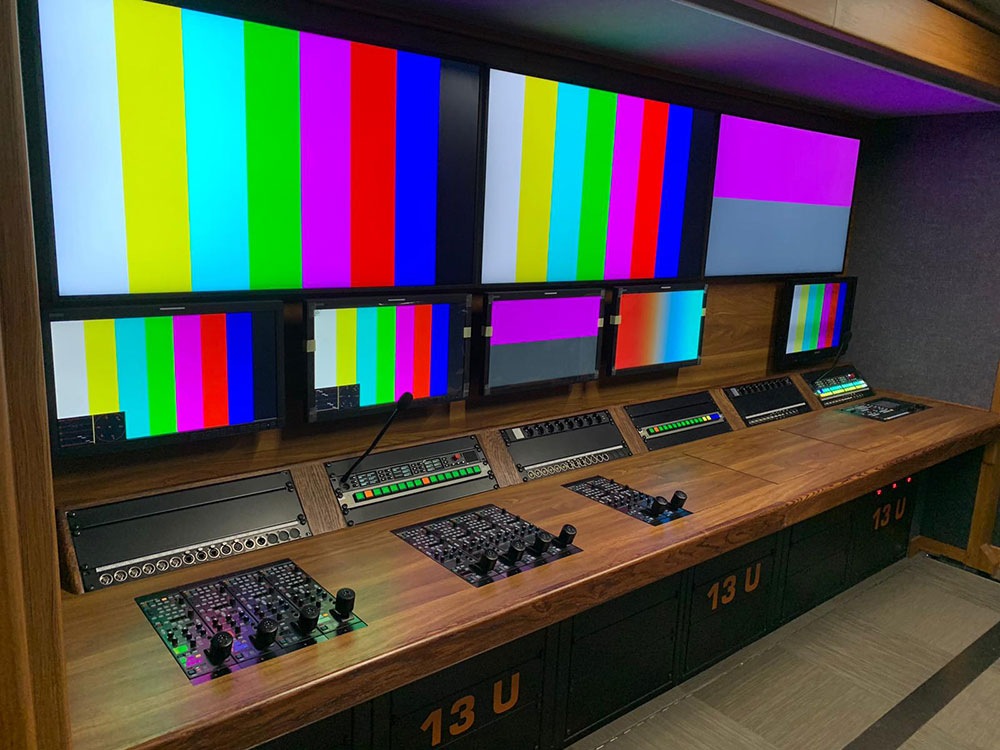

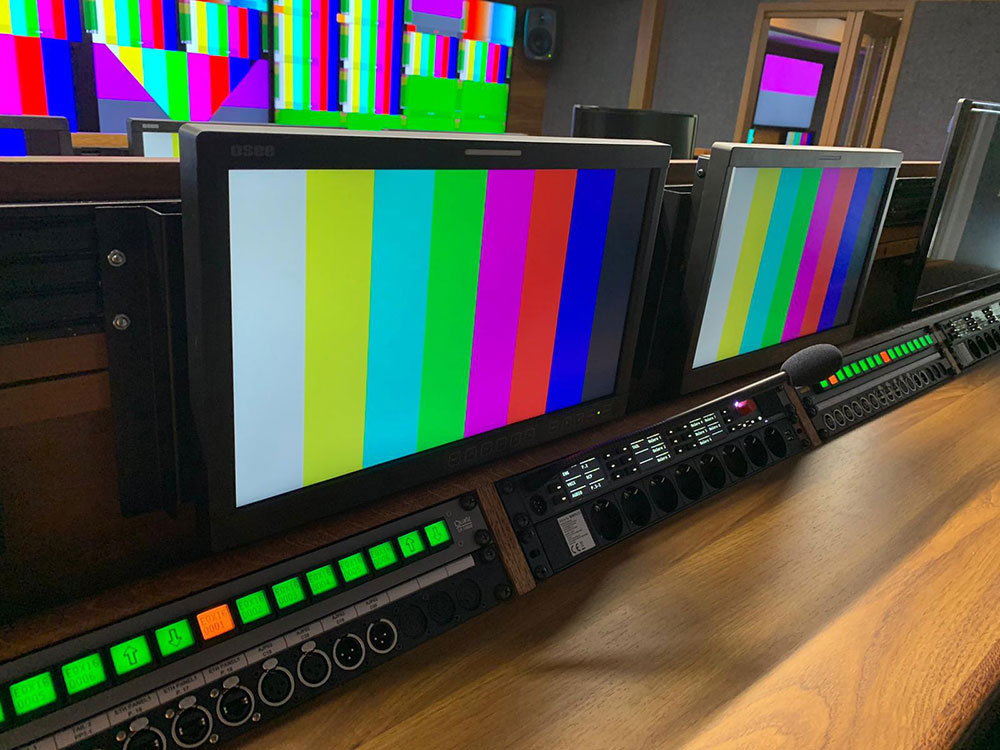

• The OBVAN has three seperate operational areas such as Audio Room, Video Production Room and Engineering Room.
• It is designed to accomodate up to 24 camera chains in 4K with total operational positions reaching up to 26 people.

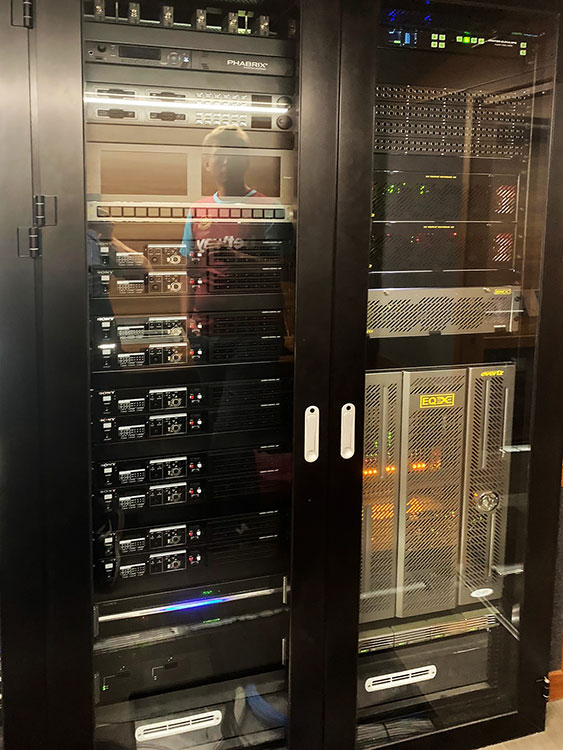

• It has seperate AC systems for operational areas and equipment racks, providing correct temperature independently.
• The hydraulics system has three levels of control, Automation, Powered Manual and full manual. This allows the expansion or stabilization systems to be functional even at unexpected situations such as malfunction or power shortage.
